    We measure distances by illuminating a target with a laser and analyze the reflected light.



Peatland Topography of Ex-MRP measured with Airborne Laser Scanning Technology; PKY, 11-2008

presented during

Indonesian Symposium
Policy and Practices in Peat and Lowland Management

of  CKPP, 24th - 26th November, 2008
Auditorium Palangka Raya University (UNPAR), Palangka Raya, Central Kalimantan, Indonesia

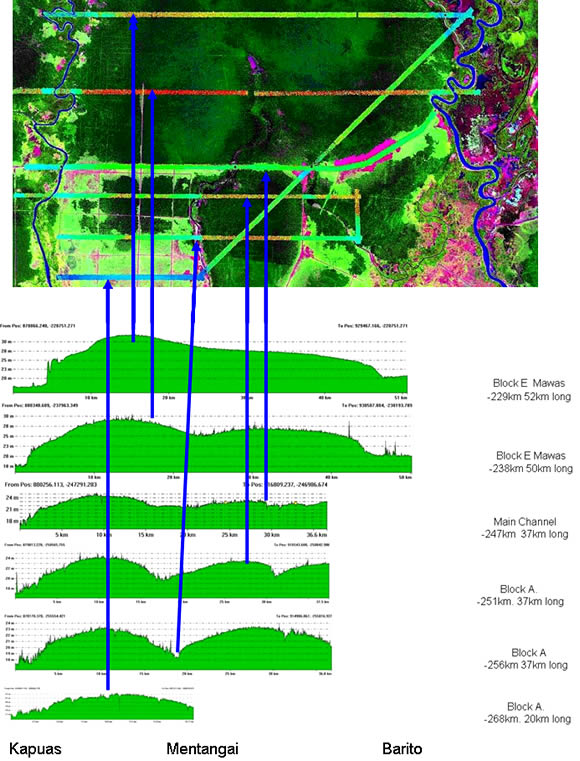

Figure: LiDAR-peatland-topography (profiles) from EX-MRP Block A + E (Mawas), 2008
Dr. Boehm and Juergen Frank,
supported by Wetlands International, CKPP

With a high-resolution Airborne Laser Scanner (ALS) the topography of peatlands was measured on 5th, 6th and 7th Aug. 2007 by a helicopter to achieve a 3-dimensional Digital Elevation Model (DEM) for the CKPP Block A + B + C + E.

With this ALS-information we processed and analysed the topography of peatland with an elevation resolution of +/-15cm and x-, y- of 0.5m in the Ex-Mega Rice Project (Ex-MRP). The 1.5µm laser beam in the near infra-red with the beam divergence of 0.5mrad could penetrate the PSF by 3% to 5% of the laser-pulses.

The highest peat dome was found between rivers Kahayan and Mangkatup with 37.5m at the track approx. 229km south of the equator. The highest peat dome in Mawas area between Kapuas and Mentangai river at 229km is 32m and at -238km 29m.

In Block A at main channel we get an elevation maximum of 25m (-247km) between rivers Kapuas and Mentangai. At Mentangai river on main channel we have the lowest point of this cross-section with 21.3m. Right from Mentangai on main channel we found the highest elevation of approx. 23m.
The peat dome in Block A drops down to 22m between Kapuas and Mentangai at -261km.

Peat Dome of Block E-Mawas and Block A, elevation calibrated to Palangka Raya Airport reference point with 25m, see figure with 6 profiles.

Elevation Longitude Latitude Kapuas Delta
32.0m 894.0km East -229km South Block E-Mawas 17.5m 14.5m
29.0m 894.0km East -238km South Block E-Mawas 17.1m ~ 12m
25.0m 889.5km East -247km South Main Channel 16.5m 8.5m
24.2m 889.0km East -251km South Block A, other day 16.9m ~ 7m
23.2m 889.0km East -256km South Block A, other day 16.8m ~ 6m
22.0m 889.0km East -261km South Block A 16.4m ~ 5.5m

The water-level on 5th August 10h - 11h near the main channel (approx. -247km) was 17.4m at Kahayan, 16.5m at Kapuas, 21.2m at Mentangai and 19.9m at Barito.

The forest situation has changed drastically in the so called Block A of the Ex-MRP. We used three Landsat images from 30.6.1991, from 16.07.2000 and the last from 05.08.2007, when we performed the ALS-flight trials on the same day over the Main Channel. We used for comparison of the Peat Swamp Forest (PSF) situation an area of 132,111ha in Block A between rivers Kapuas and Barito and South of Main Channel. These two rivers were excluded in the analysis. All PSF seems to be secondary forest. Even in 1991 the area was logged by concessions, partly heavily, Between rivers Mengkatip and Barito the land was cleared still in 1991 completely. The PSF situation of 1991 with 87,973ha was divided into 34,216ha PSF left from Mentangai to Kapuas and 53,757ha right from Mentangai to Barito respectively to Mengkatip. The rate of PSF decrease was in 16 years 4.6% per year.

read more

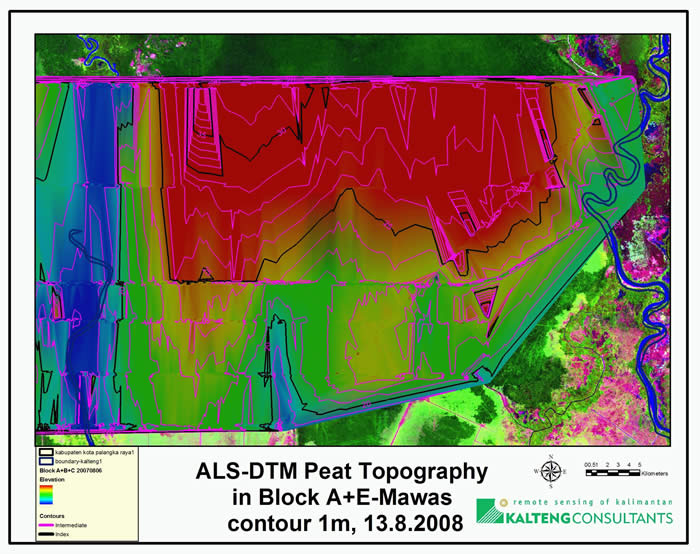

Figure: LiDAR -DTM contour map (topography interpolation) with contour-lines 1m from Block A + E (Mawas)
black are 5m-lines (30m, 25m and 20m)
